- Details
- Category: Kantleak Ball Valve Series
Only Regular Items can be selected above. Please Call for a Quote for Special Order Items.
Price shown is for selected item, quantity 1. Volume discounts will be applied in the cart.
Regular Items
| Part No | Size | D | G | H | L | Cv |
| 190BV-N | 3/8 | .50 | 1.50 | 2.78 | 1.68 | 5.5 |
| 190BV-P | 1/2 | .50 | 1.50 | 2.78 | 1.68 | 5.5 |
Special Order Items
| Part No | Size | D | G | H | L | Cv |
| 190BV-L | 1/4 | .44 | 1.50 | 2.78 | 1.68 | 5.2 |
Pressure Rating:
- Bottom Port as Inlet - 600 P.S.I.
- Side Port as Inlet - 100 P.S.I.
$31.47
- Details
- Category: Kantleak Ball Valve Series
Price shown is for selected model, quantity 1. Volume discounts will be applied in the cart.
$27.03
- Details
- Category: Kantleak Ball Valve Series
Price shown is for selected item, quantity 1. Volume discounts will be applied in the cart.
Regular Items

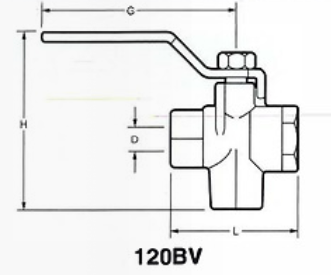

| Part No | Size | D | G | H | L | Cv |
| 120BV-L | 1/4 | .44 | 3.5 | 3.12 | 2.25 | 5.2 |
| 120BV-N | 3/8 | .50 | 3.50 | 3.12 | 2.25 | 5.5 |
| 120BV-P | 1/2 | .50 | 3.50 | 3.12 | 2.25 | 5.5 |
Pressure Rating:
- Bottom Port as Inlet - 500 P.S.I.
- Side Port as Inlet - 100 P.S.I.
$36.90
